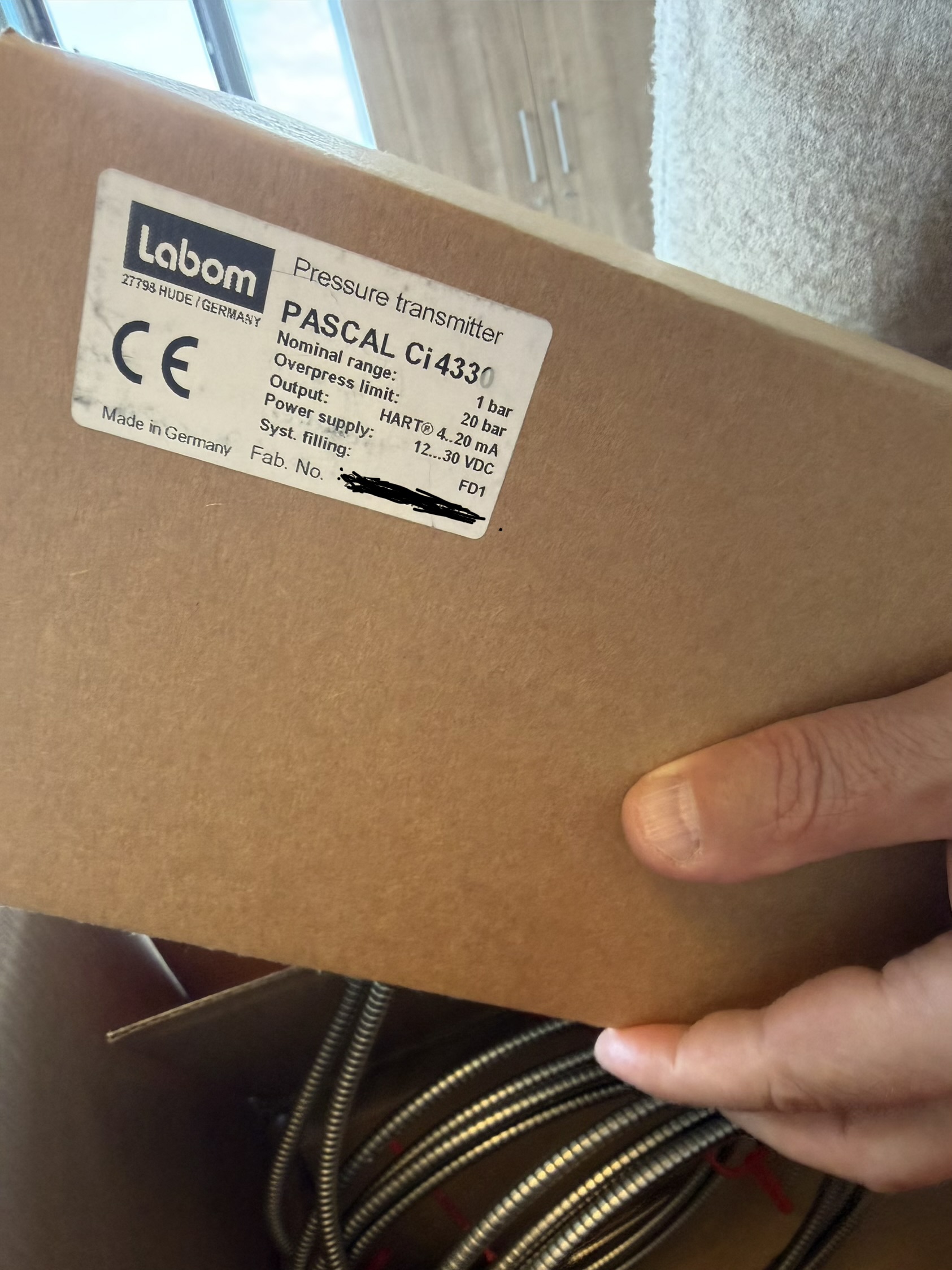

DIFFERENTIAL PRESSURE AND LEVEL TRANSMITTER PASCAL Ci4 DELTA according to data sheet D4-071-2 CI4330 1 bar, turndown up to 100: 1 Overload limit + side 20 bar Overload limit - side 10 bar Static pressure on both sides up to 75 bar A1053 Accuracy: <= 0.10% of set. Measuring span (Lin./Hys./Rep., Up to Turndown <= 5: 1 no changes) F1 parameterization: standard according to data sheet H21 output signal: ... 20 mA with HART High-resolution graphic display with backlight Intuitive 4-button operator guidance, quick setup function Language package (English, Turkish, English by default M26.2 Y1 Housing material stainless steel mat. 1.4301 / 1.4305 (304/303) 1 Material front cover polypropylene (black), window made of Makrolon Housing protection class: IP 65 / IP 67 electrical connection: cable gland M16x1.5 PA black, for Cable ø 4.5-10 mm T20 0 Cable clamps: spring clamps up to 1.5 mm² Diaphragm seal attachment side (-) DD4
