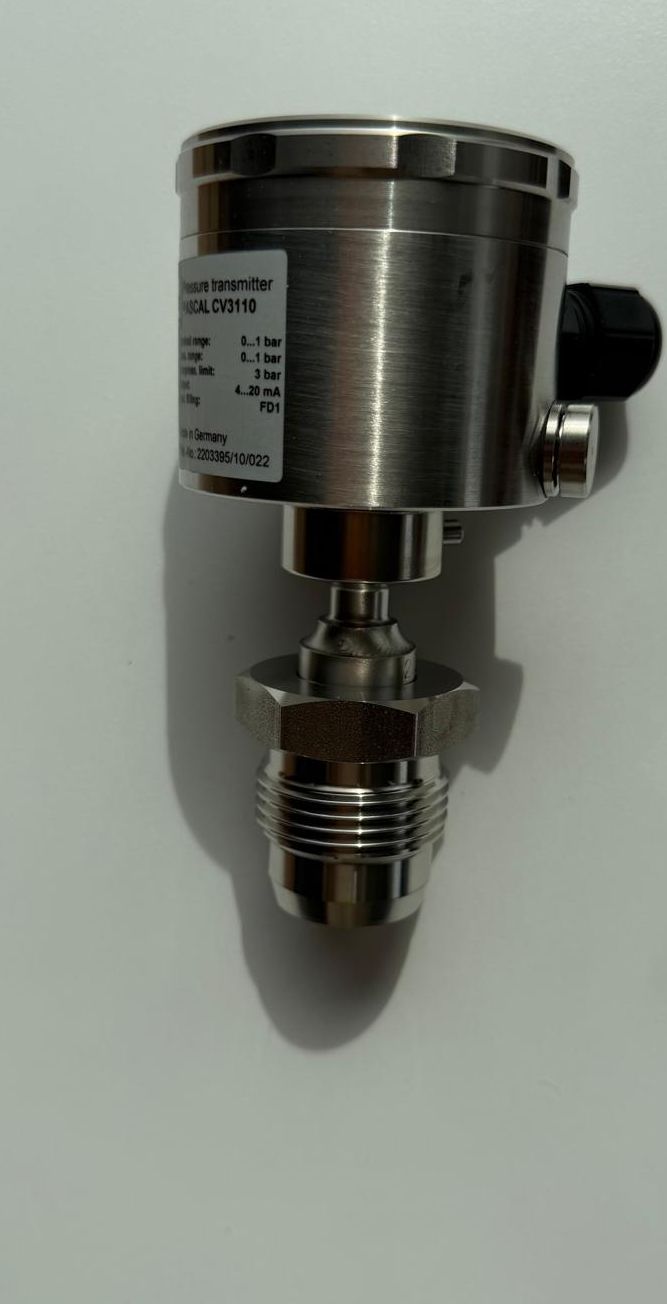

Pascal CV3110-A1053-F10-H1100-M1-N10-T4-T20-K1085-K80
PRESSURE TRANSMITTER PASCAL CV
for food / pharmaceutical / biotechnology
acc. to data sheet D4-017/22
nominal range: 1,0 bar, overload limit 3 bar, standard
measuring range setting: turndown 5:1
accuracy: <= 0.15% of measuring span (linearity, hysteresis and repeatability)
measuring range: 0...+1,000 bar(ayarlanabilir)
output signal: 4...20 mA, rising characteristic (standard)
setting damping: 0.0 sec. (standard)
setting alarm state: < 3.6 mA
without display module
switching module: without
case: hygienic housing design with screw cap
material: stainless steel
degree of protection: IP 69K
electrical connection: cable gland M 16 x 1.5, PA black
design: standard
process connection: G 1 A process adapter with hygienic process connection
(elastomer-free)
screw cap closed, without window
country of origin:Germany
