Order Code: CE6120-A1053-K1010-T120-H1

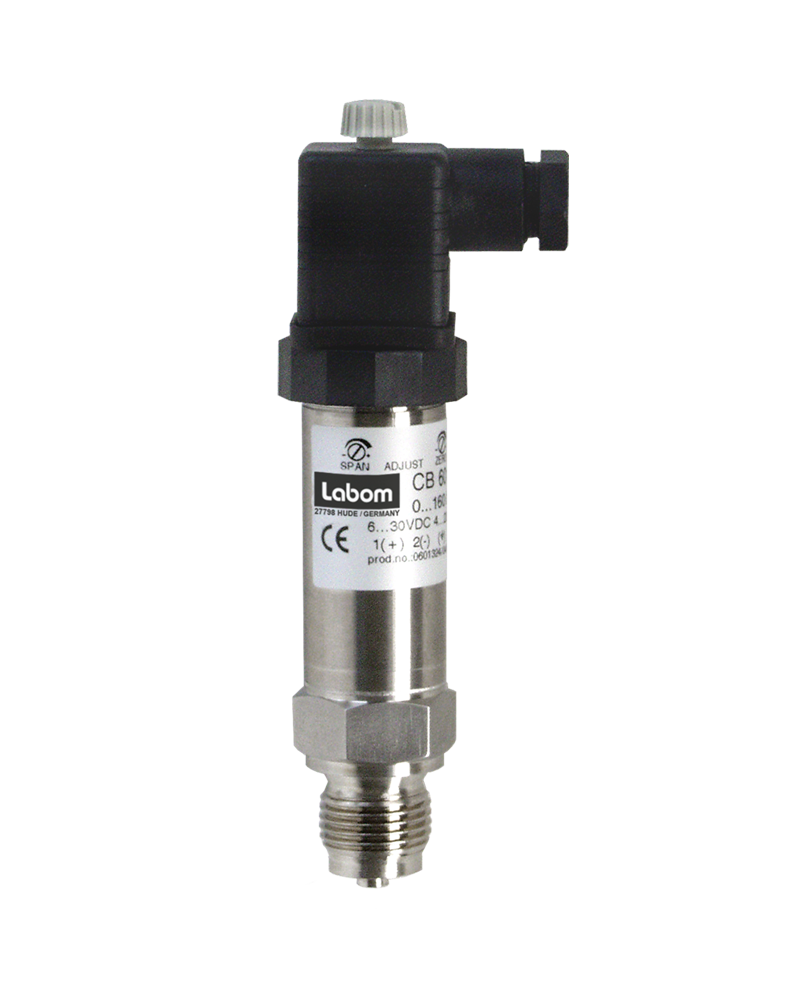

CE6 COMPACT PRESSURE TRANSMITTER with
threaded connection
see data sheet D4-020-1
12 design: flush mounted diaphragm,
with temperature decoupler
0 Ex-protection: without
A1 pressure sensor: piezoresistive for
gauge pressure
053 measuring range 0...1 bar,
overload limit 3 bar
measuring accuracy:
linearity error incl. hysteresis < +
0.2 % f.s.
accuracy of adjustment < +/- 0.2 %
f.s.
K10 process connection: threaded
connection
10 nominal width: G1/2 B with O-ring
and sealing washer
gasket material: NBR
T120 electrical connection: circular
connector M12, IP 65, union nut of
polyamide
H1 output signal: 4...20 mA, 2-wire
technology
Country of origin:Germany
Custom-Tariff-No.: 90262020
