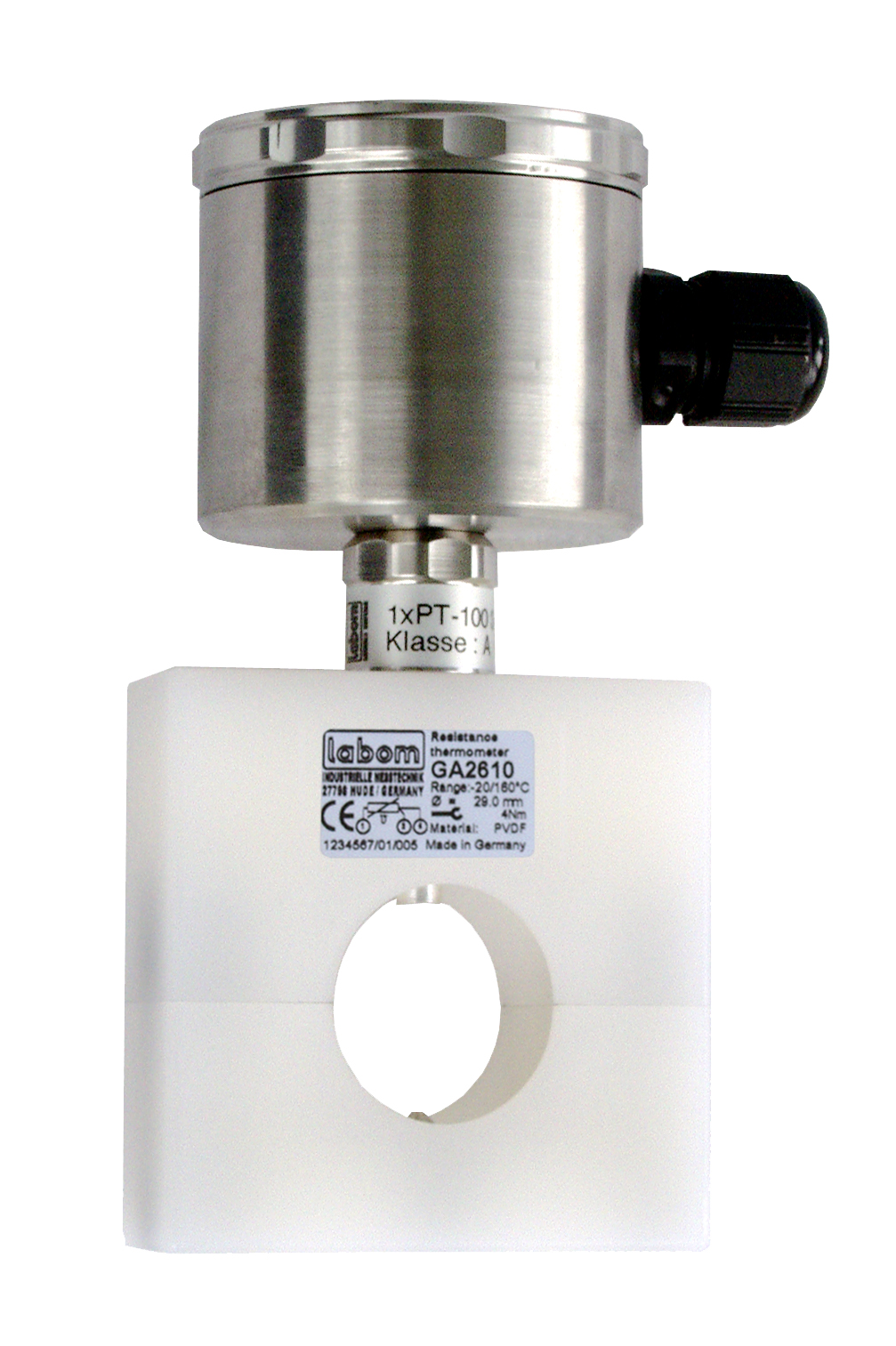

GA2610-A4127-M23-N32-T150-Z52-W4020-W2004 PA2430-F12-H1
For piping 0,5 inch
GA261 RESISTANCE THERMOMETER Clamp-on technology for temperature measurement on pipes see data sheet T4-028
0 explosion protection: without
A4 clamping element: for collar installation
127 for pipe external diameter: 12.7 mm
M23 material insulating sleeve: PVDF (-40...+150 °C)
N32 measuring resistor: 1 x Pt100, per DIN EN 60751 class A, 4-wire technology
T150 connection head: circular connector M12 x 1 (4 pins)
Z52 transmitter mounting: integrated in the circular connector
M12, Type PA2430
W4020 ADDITIONAL DESIGN: marking (adhesive label), see below W2004 CALIBRATION PROTOCOL: with 3 measuring points
PA243 TRANSMITTER for temperature (Pt 100), programmable see data-sheet T4-082-1 with circular connector M12x1 (4-pins)
0 design: standard
F12 configuration: see below
measuring range: 0...+150 °C error current if there is a sensor break 22.8 mA
damping: 0 s, standard
fab.-no.: 1604324/03/003
Country of origin:Germany
Custom-Tariff-No.: 90251900
